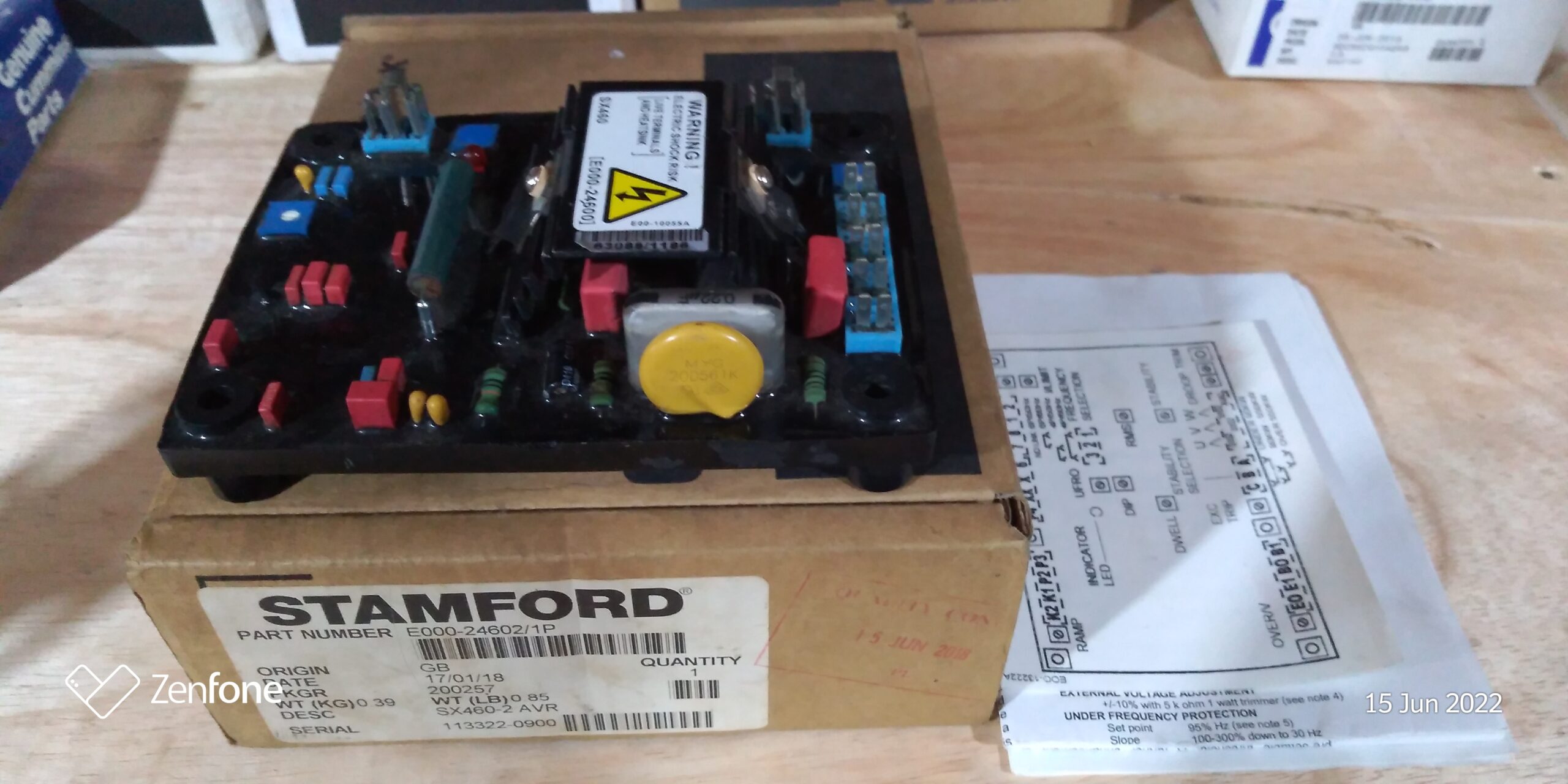

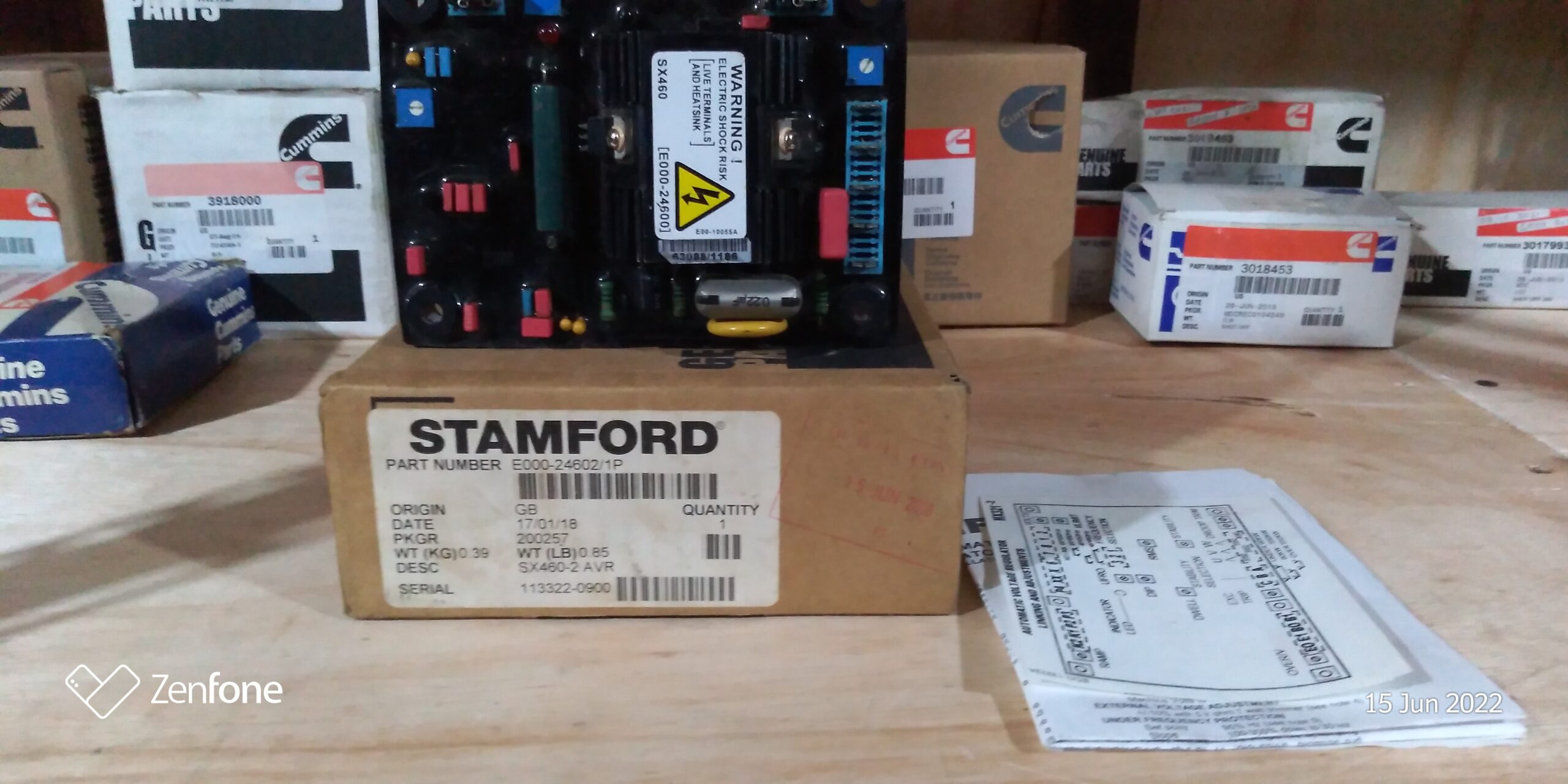

SX460 AUTOMATIC VOLTAGE REGULATOR-AVR, PN. E000-24602 STAMFORD

Deskripsi

PART NO : PN. E000-24602
DESC : SX460 AUTOMATIC VOLTAGE REGULATOR-AVR
BRAND : STAMFORD
USE : ELECTRICAL, REGULATOR
INFO :
INPUT : Voltage Jumper selectable, 95-132V AC or 190-264V AC, Frequency 50-60 Hz nominal, Phase 1
OUTPUT : Voltage max 90V dc at 207V ac input, Current continuous 4 A dc, Intermittent 6 A for 10 secs, Resistance 15 ohms minimum
REGULATION : +/- 1.5%
THERMAL DRIFT : 0.05% per deg. C change in AVR ambient
TYPICAL SYSTEM RESPONSE : AVR response 20 ms, Filed current to 90% 80 ms, Machine Volts to 97% 300 ms
EXTERNAL VOLTAGE ADJUSTMENT : +/-10% with 1 k ohm 1 watt trimmer
UNDER FREQUENCY PROTECTION : Set point 95% Hz, Slope 170% down to 30 Hz
UNIT POWER DISSIPATION : 10 watts maximum
BUILD UP VOLTAGE : 4 Volts @ AVR terminals
ENVIRONMENTAL : Vibration 20-100 Hz 50mm/sec, 100Hz – 2kHz 3.3g, Operating temperature -40 to +70°C, Relative Humidity 0-70°C 95%, Storage temperature -55 to +80°C
